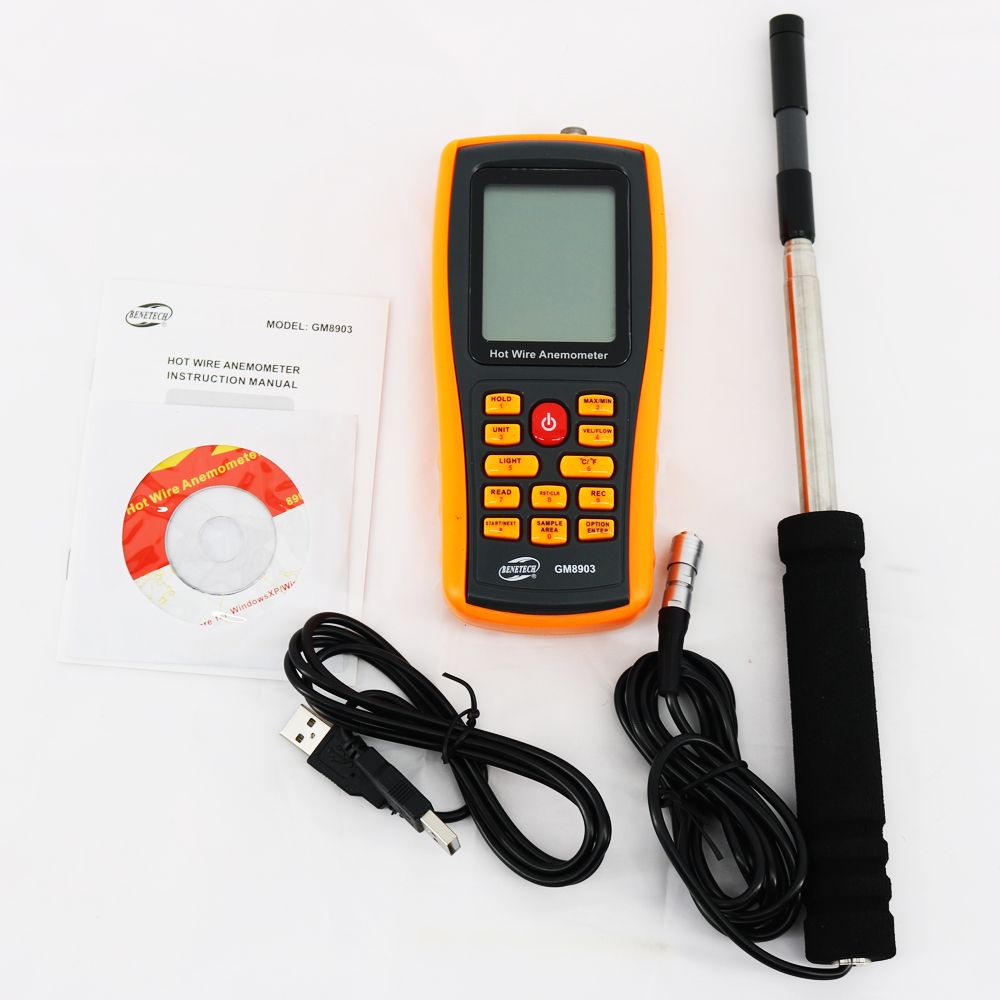

Supplied with carrying case, instruction manual, 4 batteries, CP23 USB cable. Functions: REL, HOLD and auto power off which can be disabled, IP66 protection degree. USB output for data transfer in real time to a PC. Datalogger which stores the maximum, minimum, average value and can store up to 38,000 samples. Speed probes, the temperature probes, cable for data downloading have to be ordered separately. Supplied with carrying case, instruction manual, 4 batteries.
Functions: REL, HOLD and auto power off which can be disabled, IP 66 protection degree. RS232C output for data transfer in real time to a PC Storage of maximum, minimum, average value. Accurate to 1 min/month max driftĪnemometer-Thermometer for air speed measurement, designed for hot-wire, vane and Pt100 temperature probes with Operating temperature /storage temperatureīaud rate 38400 Parity None:Nbit 8 Stop bit 1: Protocol Xon/XoffĢ000 pages each of 19 samples 38000 samples totalġ,5,10,15,30 seconds, 1,2,5,10,15,30,60 minutes Pipeline section for Volume flow rate calculationĤ 1.5V type AA / 200h with 1800mAh alkaline You have a choice of 4 different hot wire sensor depending on the range requiredĪir Speed, Air Temperature and Calculated Volume Flow Rate,Ġ.01 m/s - 0.1 km/h - 1 ft/min -0.1 mph -0.1 knots
Other functions include REL - relative measurement and HOLD - current value. The max min average function calculates maximum, minimum and average values according to the user requirements. The logging interval, baud rate can be configured by the user, The instrument can also be used to acquire real time measurements to a PC or a printer.
#Anemometer hot wire serial#
The data-loggers they can store up to 36000 samples which can be transferred from the handset to PC via the RS232C and USB serial ports.
There are two version of the handset 2103.1 standard and 2103.2 with data logging. There is connection for platinum resistance thermometer so that the instrument can also be used as a precision thermometer. The volume flow is calculated from the dimensions of the duct or pipe which you enter into the meter. The instrument calculates and reads out directly in air velocity. They are used to perform measurements in air conditioning, heating, ventilation and similar industrial applications, They measure the air velocity based on the cooling of a small hot element in the tip of the probe. This page deals with Hot Wire sensors but the same hand set can be used with a Vane sensor.
#Anemometer hot wire portable#

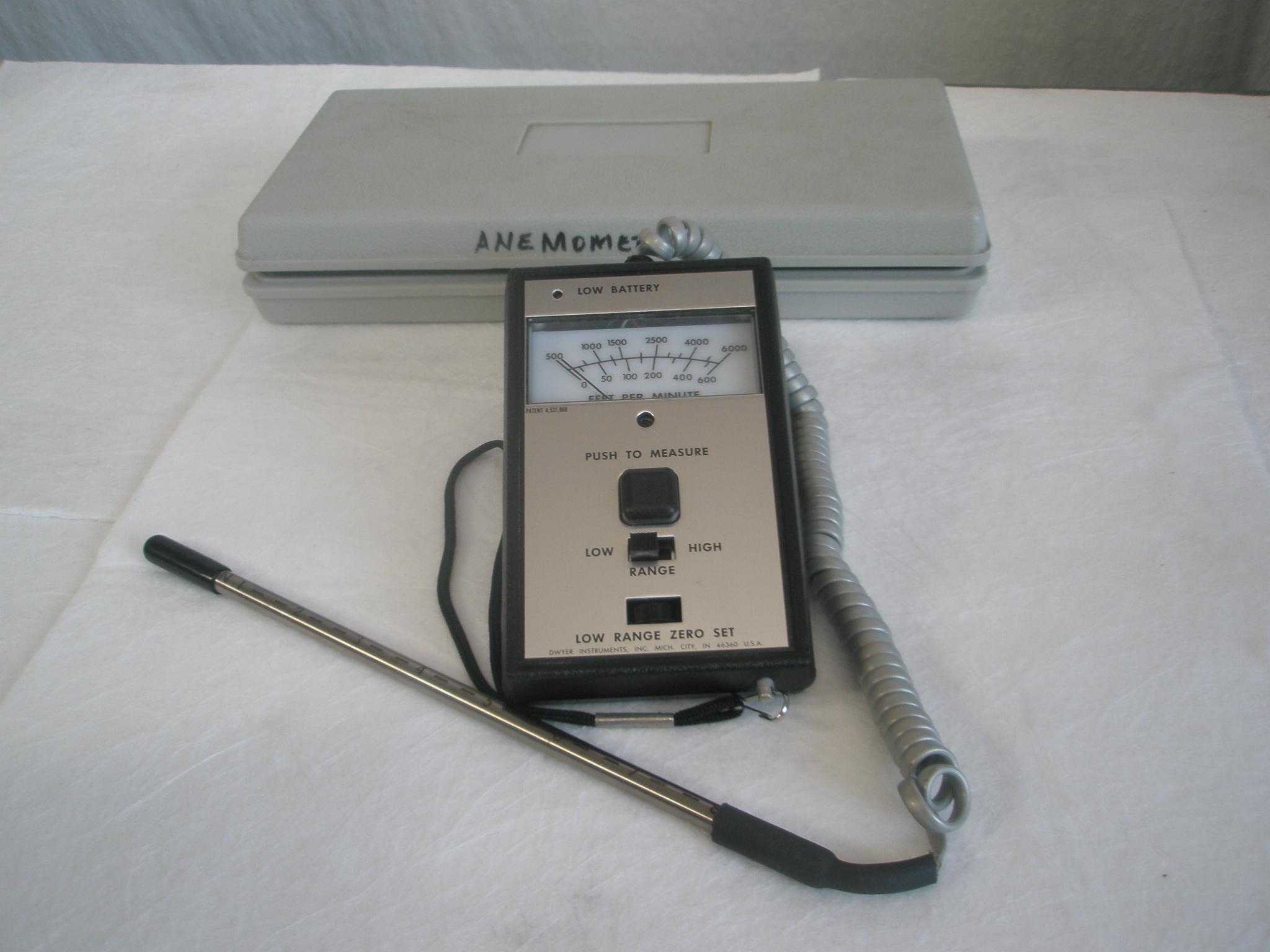

The 2103 series meters are portable anemometers for use with Hot Wire or Vane type sensors.
